Services · overview

Turning up to Ø 250 mm.
Milling up to 2,100 mm.

From prototype to medium series — in a single setup, to ISO 9001.

Services

Four core capabilities.
One machine park.

From drawing to finished part — turning, milling, cylindrical grinding and assemblies under one roof. Series-ready, repeatable, ISO 9001.

CNC Turning
01 · Ø 10 – 250 mm · bar work up to Ø 80

CNC Turning

Complex turned parts in a single setup. Turrets with driven tools, Y axis and sub-spindle.

Machines
  • Nakamura NTY³ (3 turrets, 12 axes)
  • Nakamura WT-300
  • Nakamura WT-150
Details
CNC Milling
02 · Travel up to 2,100 × 840 × 760 mm

CNC Milling

3- to 5-axis machining on high-precision centres. Tool changers up to 40 pockets, swivel head for complex geometries.

Machines
  • Hurco VMX 84t (40-tool changer)
  • Hurco VMX 60 SRTi (swivel rotary table)
  • Hurco VMX 42i
Details
Assemblies
03 · Single pieces to medium series

Assemblies

Assemblies and components from one supplier — from part production through fitting to functional testing.

Machines
  • Part production
  • Assembly in hall 2
  • Functional testing
Details
CNC Cylindrical Grinding
04 · Ø up to 250 mm · length up to 1,045 mm

CNC Cylindrical Grinding

High-precision external cylindrical grinding on a CNC universal machine. Tolerances in the micron range, mirror-smooth surfaces.

Machines
  • Studer S33
Details
Additional services04 / 04

Sawing & preparation

Saws up to Ø 300

Sandblasting

In-house blasting unit

Prototyping

From drawing to part

Surface finishing

to DIN EN ISO 21920

Not sure which process your part needs? We will tell you.

Send your drawing06188 9953-0
Parts

What leaves our shop.
No stock photos.

Every part on this page was made in our own shop. If yours looks anything like these, chances are we can make it too.

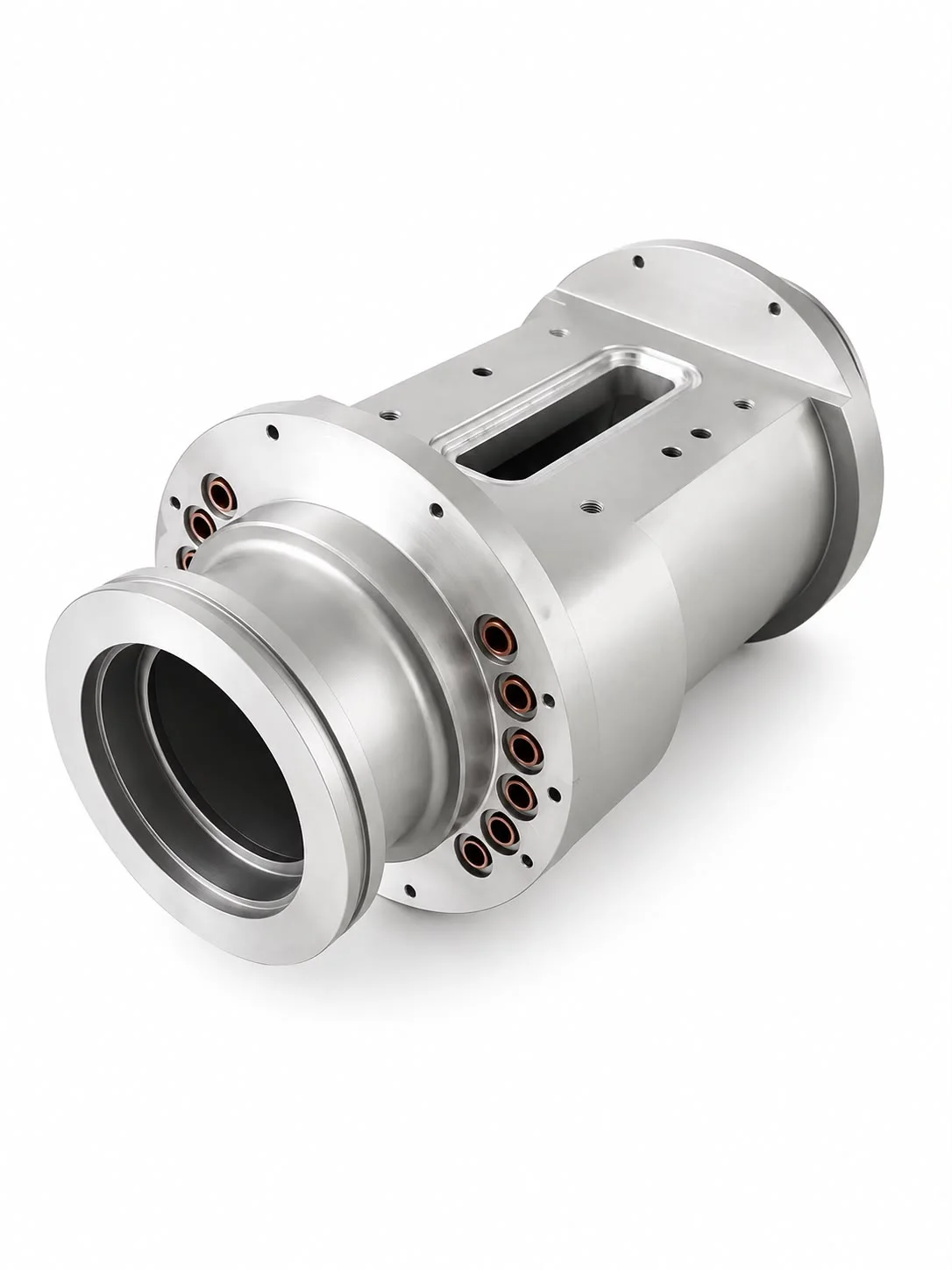

  • Housing with flange collar, bearing seat and pressed-in bushings01
    Turn-milled part

    Housing with flange collar, bearing seat and pressed-in bushings

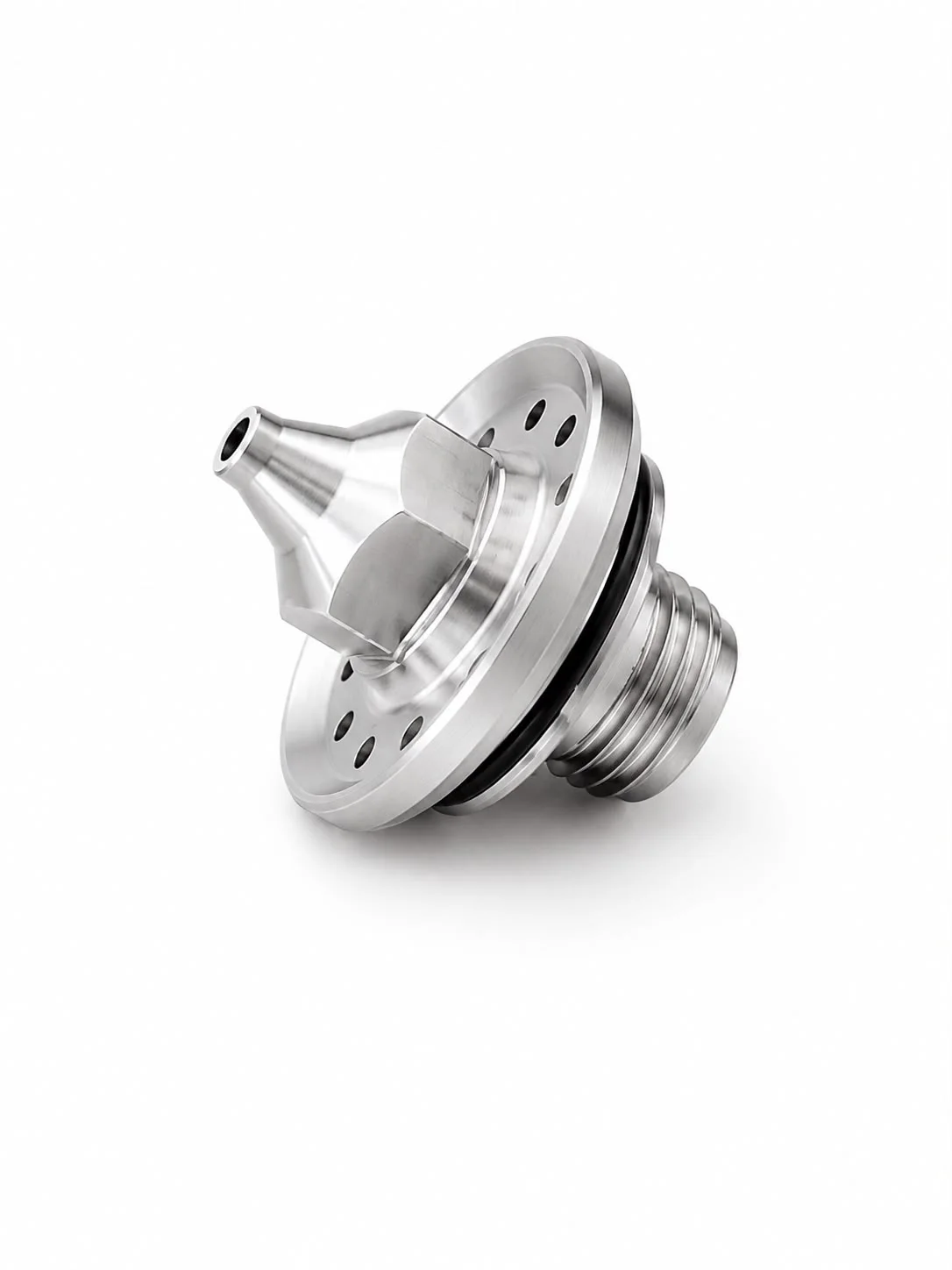

  • Rotational part with external thread and tapered shoulder02
    Turned part

    Rotational part with external thread and tapered shoulder

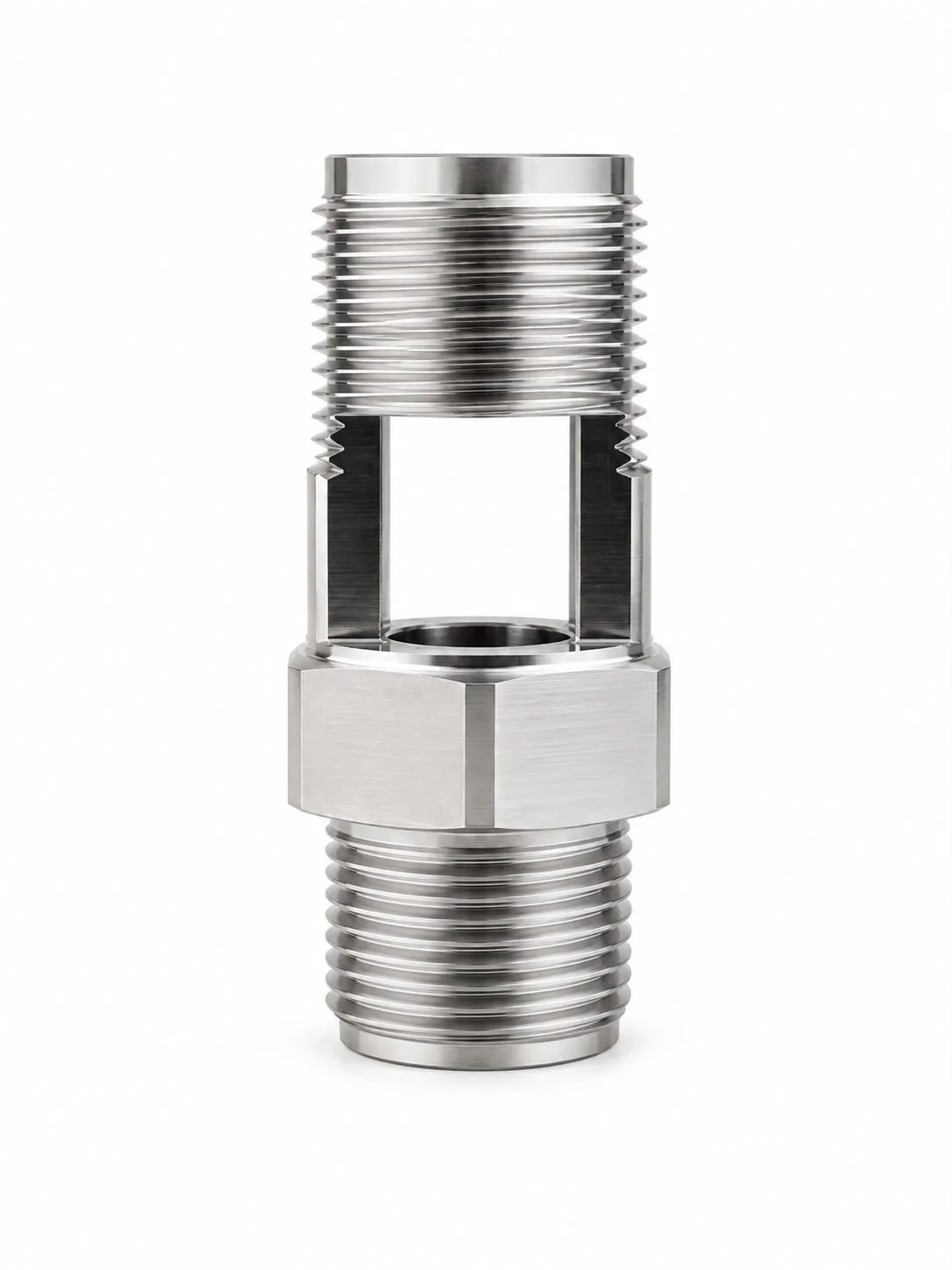

  • Union fitting with hexagon, threads on both ends and a through slot03
    Turn-milled part

    Union fitting with hexagon, threads on both ends and a through slot

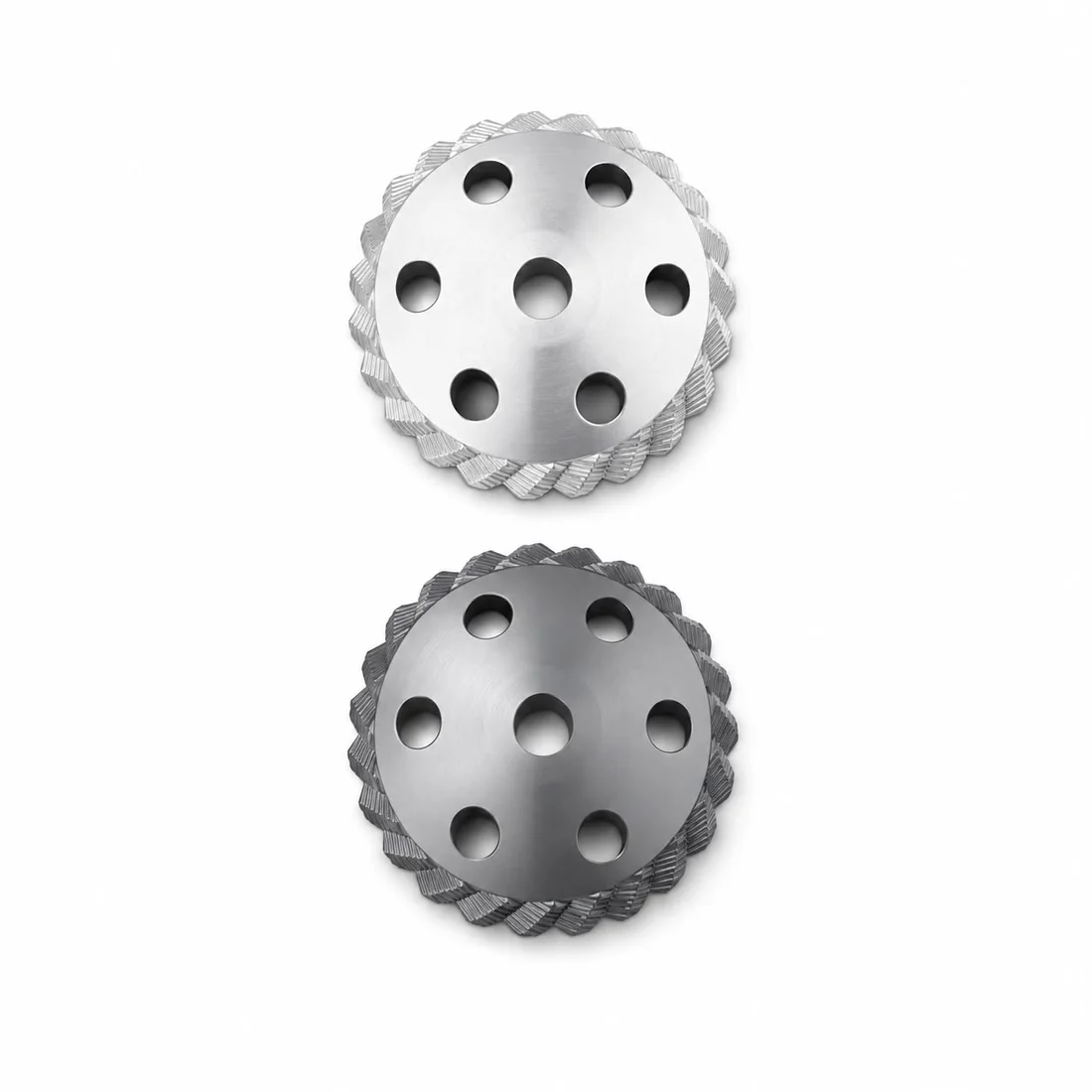

  • Helical gears with bolt circle, produced as a matched pair. Surface hardened04
    Geared part

    Helical gears with bolt circle, produced as a matched pair. Surface hardened

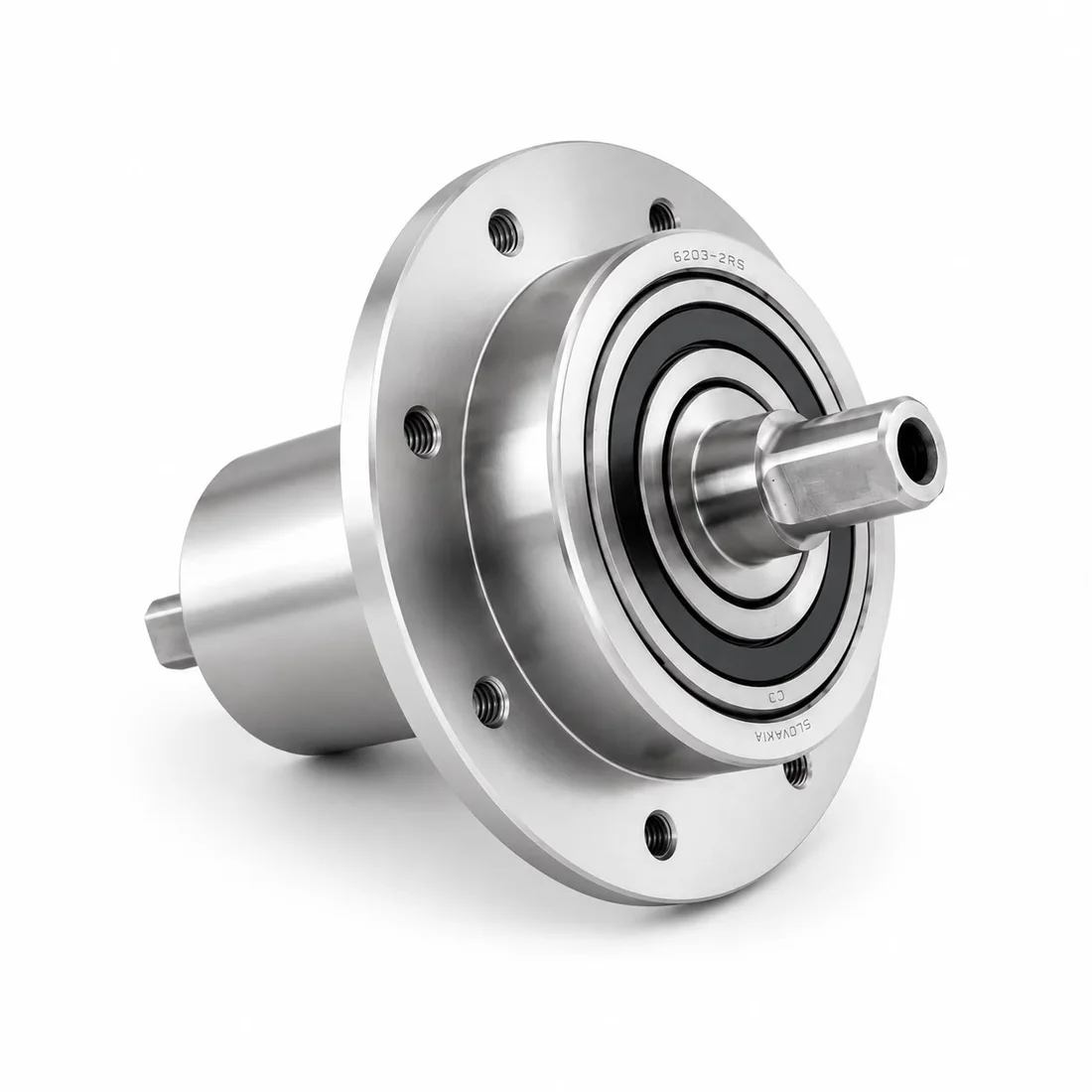

  • Flange bearing with shaft, assembled and function-checked05
    Assembly

    Flange bearing with shaft, assembled and function-checked

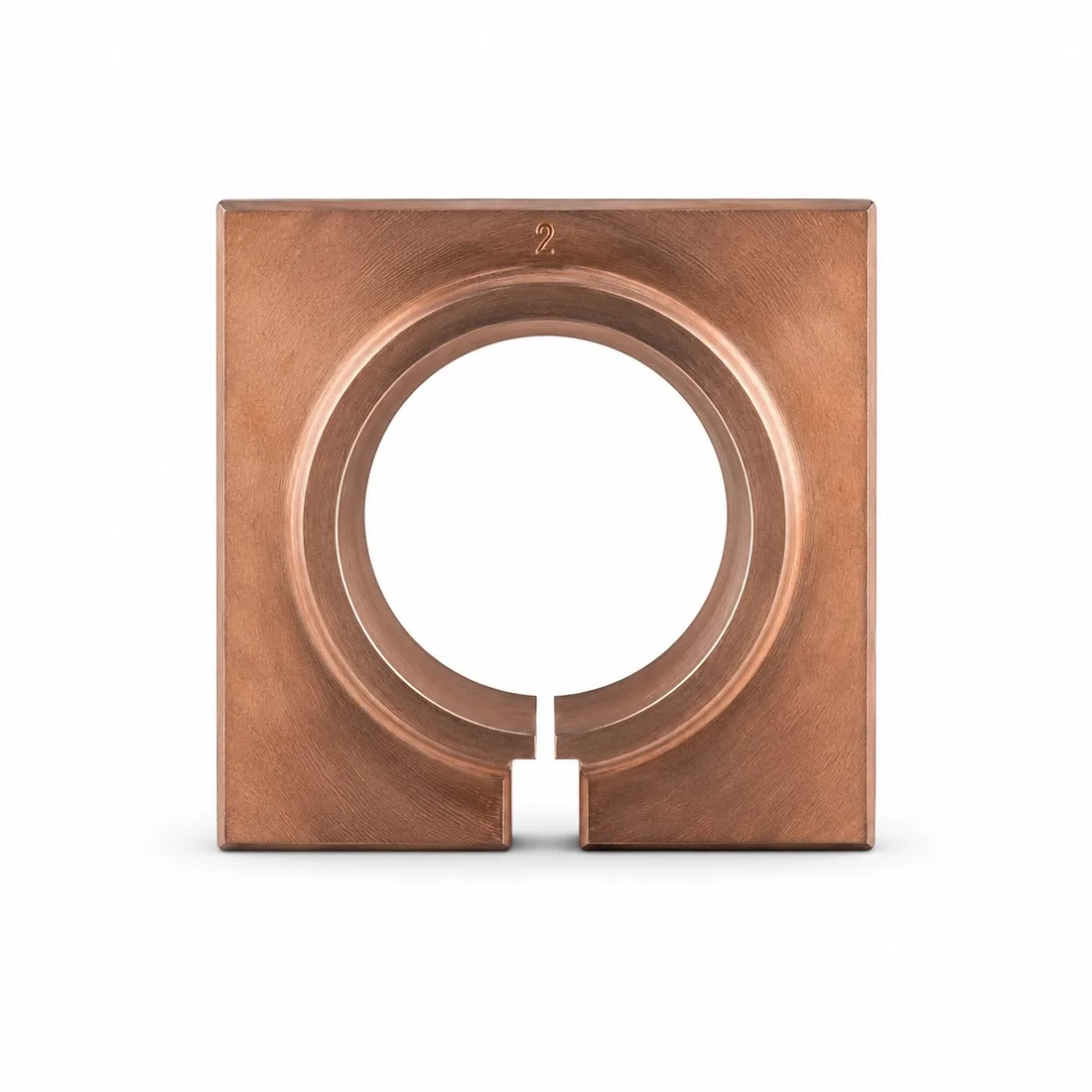

  • Slotted clamping block with fitted bore and marking06
    Milled part

    Slotted clamping block with fitted bore and marking

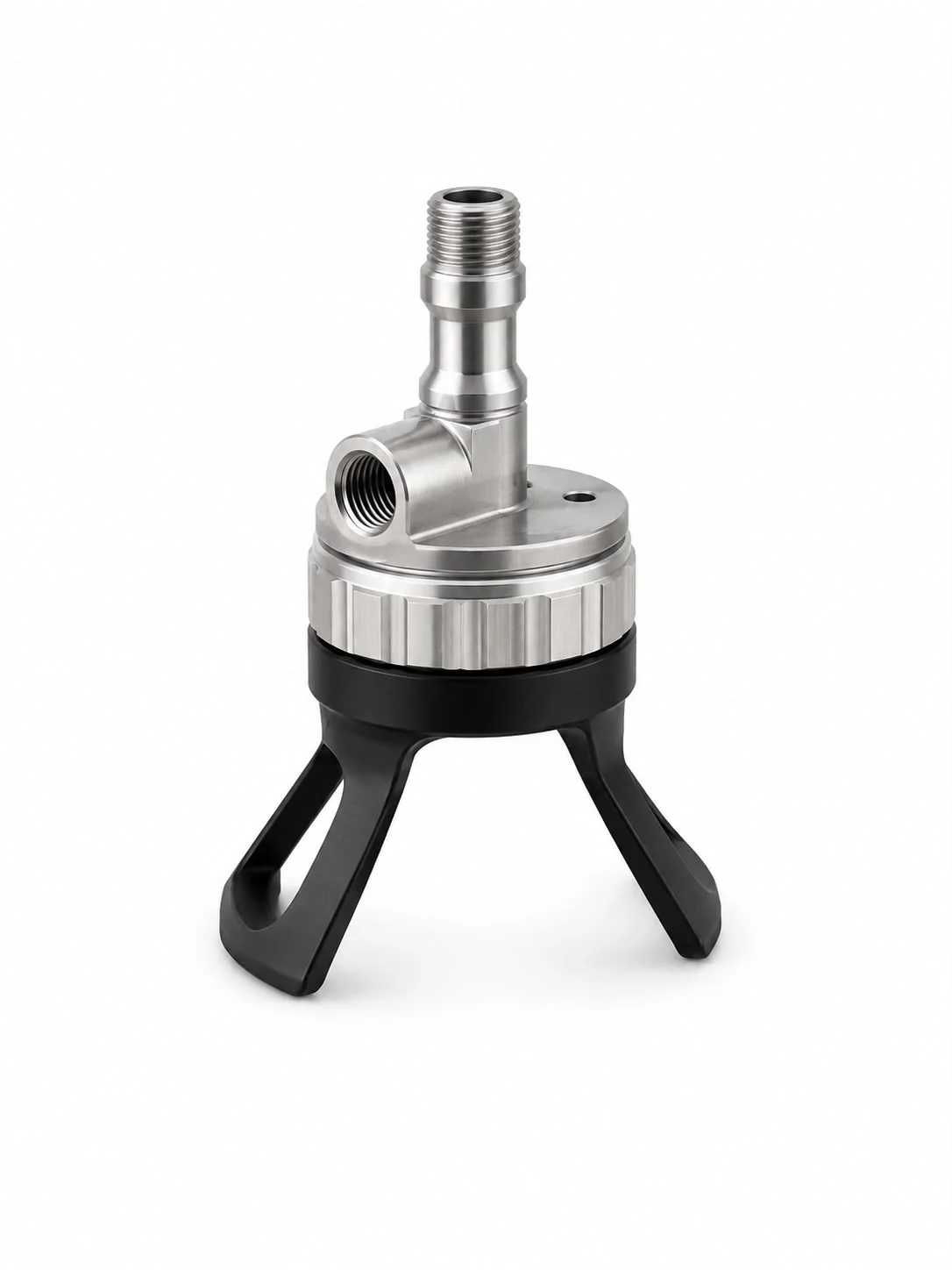

  • Connection head with clamping jaws, fully assembled07
    Assembly

    Connection head with clamping jaws, fully assembled

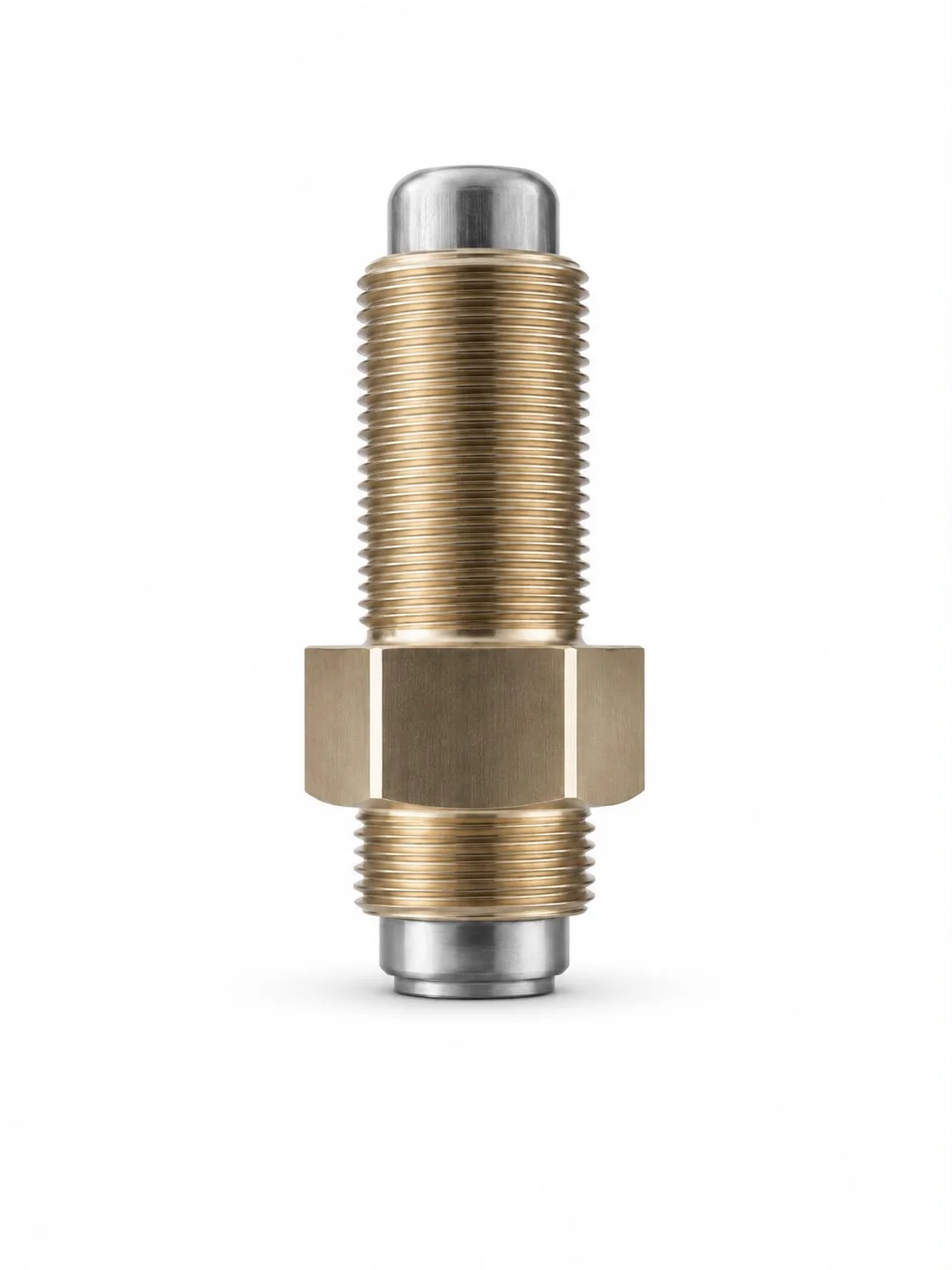

  • Brass turned part with hexagon, steel insert and integrated compression spring08
    Turned part

    Brass turned part with hexagon, steel insert and integrated compression spring

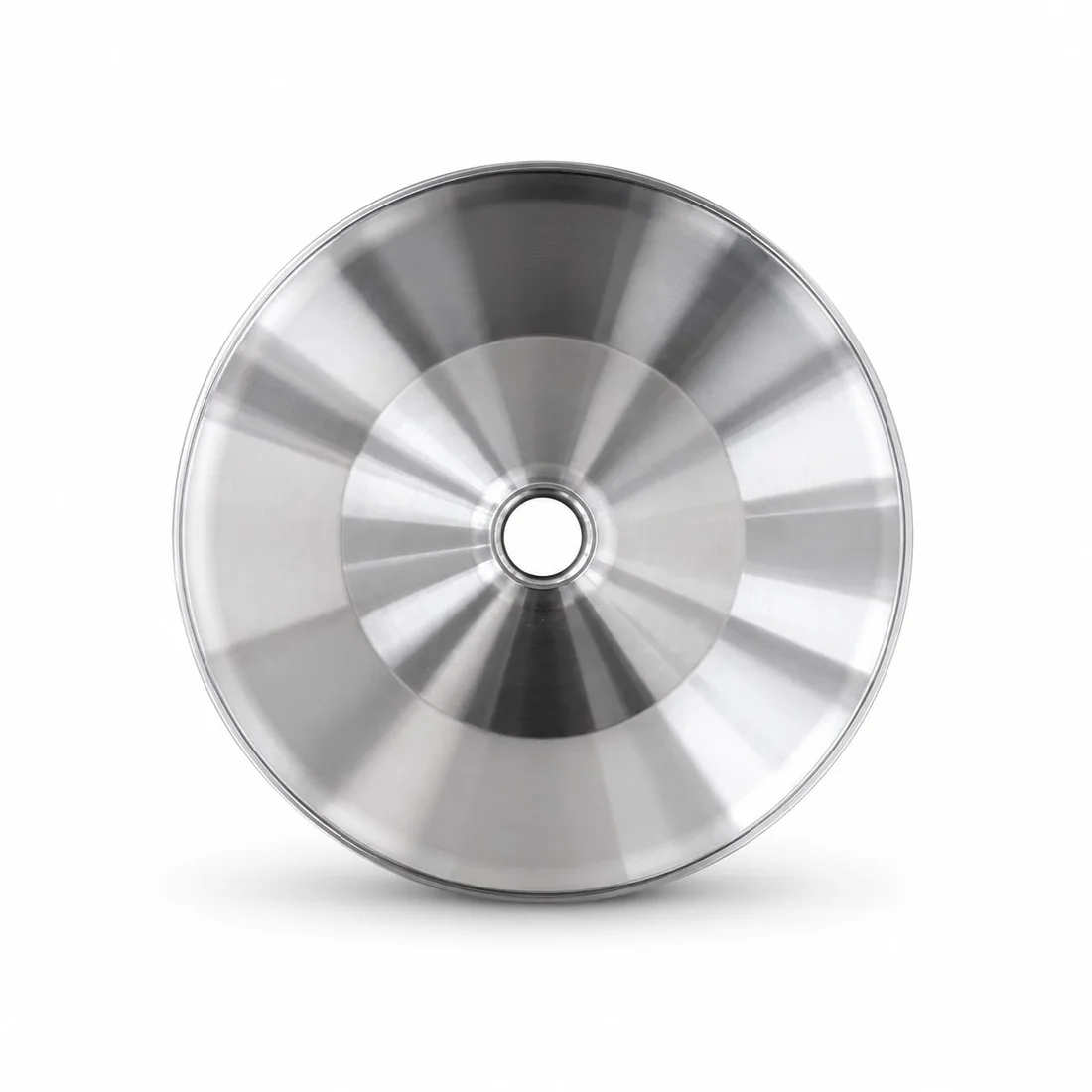

  • Large cone plate, face-turned with spiral finish09
    Turned part

    Large cone plate, face-turned with spiral finish

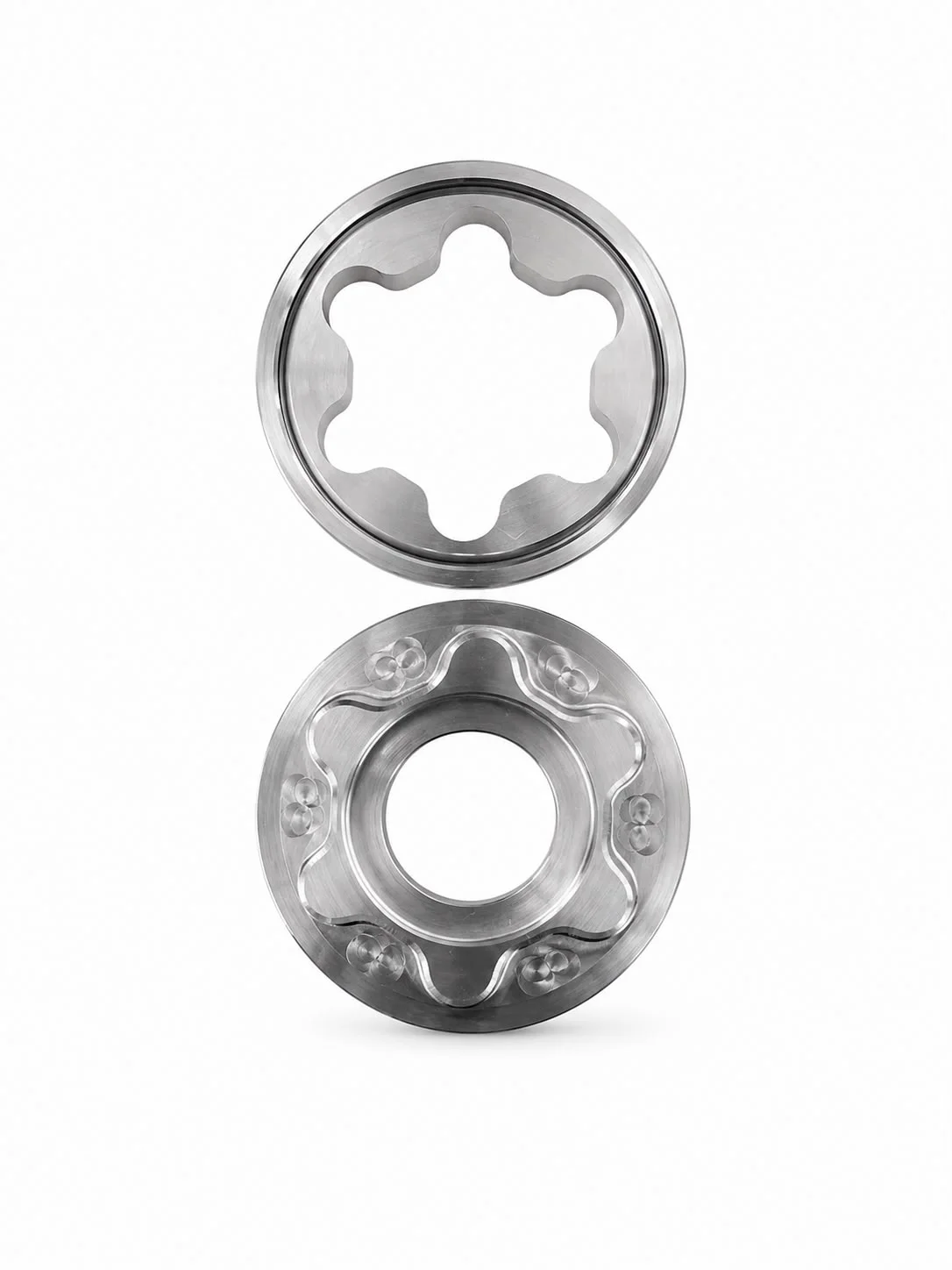

  • Rotor pair with internal and external contour, machined as a matched set10
    Precision part

    Rotor pair with internal and external contour, machined as a matched set

Your part is not shown here? Send us the drawing and within two working days we will tell you whether and how we can make it.

Upload your drawing
What we machine

Materials
and dimensions.

We machine the full range of common metals and engineering plastics. If your material is not listed, just ask — special alloys run on our machines as well.

Steels

01
  • ·S235 · S355
  • ·C45 · 42CrMo4
  • ·Case-hardening steel 16MnCr5
  • ·Tool steel 1.2379
hardened up to 62 HRC on request

Stainless & nickel alloys

02
  • ·1.4301 · 1.4404
  • ·1.4571 · 1.4462 Duplex
  • ·Inconel 625 · 718
  • ·Hastelloy C-276
3.1 / 3.2 certificates

Aluminium

03
  • ·AlMg3 · AlMg4,5Mn
  • ·EN AW-6082 · 7075
  • ·EN AC-44300 cast
  • ·Anodising grades
anodised, powder coated

Copper alloys

04
  • ·Brass CuZn39Pb3
  • ·Copper Cu-ETP
  • ·Bronze CuSn12
  • ·Ampco (CuAlNi)
suitable for electrical work

Titanium & special

05
  • ·Ti Grade 2 · Grade 5
  • ·Tantalum · molybdenum
  • ·Special grades on request
  • ·Biocompatible
medical & aerospace

Plastics

06
  • ·POM (Delrin)
  • ·PEEK · PA6 · PA6.6
  • ·PTFE (Teflon)
  • ·PVC · PE-HMW
machinable, washable
Key figures
Turning Ø
10 – 250 mm
Stange Ø
bis 80 mm
Milling X/Y/Z
2.100 × 840 × 760 mm
Cylindrical grinding
Ø 250 · L 1.045 mm
Toleranz ISO
IT5 · microns achievable
Surface
Ra ≤ 0,2
Batch sizes
1 – 10.000 Stk.
Werkstoff­zeugnis
3.1 / 3.2
How we work

From your PDF
to series delivery.

Four steps from drawing to delivery. You always know where your part stands and who will call if something needs clarifying.

  1. 01

    Enquiry with drawing

    Send DWG, STEP, PDF or DXF with quantity and target date — through the form or by email.

    Dauer≤ 2 Werktage
  2. 02

    Technical review

    Luca and Wilhelm check feasibility, material, clamping and process. You receive a quote without obligation with unit price, tooling cost and delivery date.

    Dauer48 hours
  3. 03

    First article

    First setup, sample part, measurement report. Only once the first article is approved does the series start.

    Dauer1 – 3 Wochen
  4. 04

    Series production

    Repeatable to the same programme and the same fixtures. Documented, traceable, on schedule.

    Daueron call-off
Who we produce for

Sechs Branchen.
One standard.

Our customers are hidden champions — specialised mid-sized firms that need parts which last. From a single piece to PPAP-documented series.

01 / 06

Automotive

Drive components · bearing blocks · hydraulic fittings

Series production with PPAP-capable documentation. First article inspection to VDA 2, 100 % inspection optional.

Tier 1 / Tier 2 suppliers
02 / 06

Medical technology

Implant components · surgical instruments

Stainless steel 1.4301/1.4404 and titanium Grade 5. Surfaces down to Ra ≤ 0.2 µm, cleanroom-compatible packaging available.

OEMs in endoscopy / orthopaedics
03 / 06

Hydraulics

Piston rods · bushings · valve blocks

Hardened shafts ground on the Studer S33 to micron tolerances. Dimensions up to Ø 250 × 1,045 mm.

Mobile hydraulics manufacturers
04 / 06

Mechanical & plant engineering

Assemblies · special components · prototypes

From drawing to assembled unit — functional test included. Batch sizes from one piece upwards.

German-speaking Mittelstand
05 / 06

Plant & apparatus engineering

Flanges · pipe connections · nozzles

Ready-to-install components and assemblies. Material certificate 3.1 / 3.2 on request.

Plant and apparatus builders
06 / 06

Special machinery

One-offs · repair parts · spares

Also from a sample or a sketch. 5-axis machining on the Hurco VMX 42 SR for complex geometries.

Tool and fixture makers
Contact & visits

Karlstein am Main.
30 min from Frankfurt Airport.

In the area — Hanau, Aschaffenburg, Frankfurt? Come and see us. A tour of the shop floor is included, by appointment.
